Western maintains an extensive inventory of quality acetylene and high-pressure cylinders for purchase or lease at competitive prices with fast delivery.

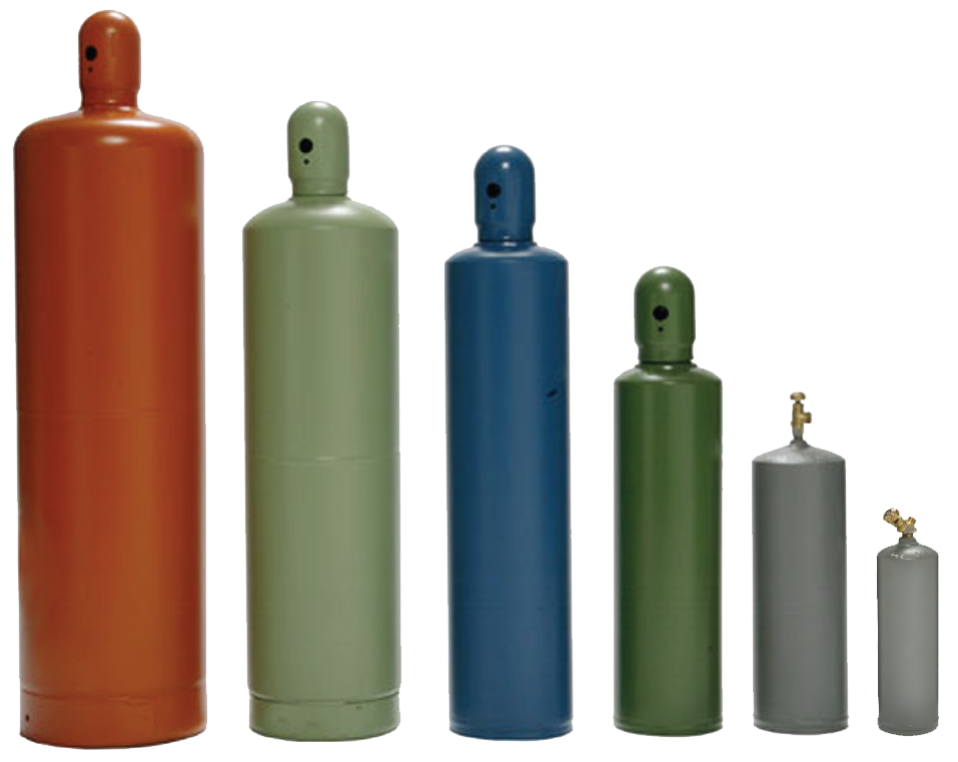

Acetylene Cylinder Specifications
| Notes: |
| – Standard tapping is 3/4″-14 NGT except MC and B, which are tapped for 3/8″ valve. |
| – All Models except MC and B are equipped for valve protection cap. |
| – Tare weight includes the shell, filler, solvent, paint, saturation gas, valve and fuse plugs. Does not include the cap weight of 2 lb (0.91 kg) |
| – Cylinder Capacities are based on commercially pure acetylene gas at 250 psi (17.24bar) and 70 degrees F (21 degrees C). |

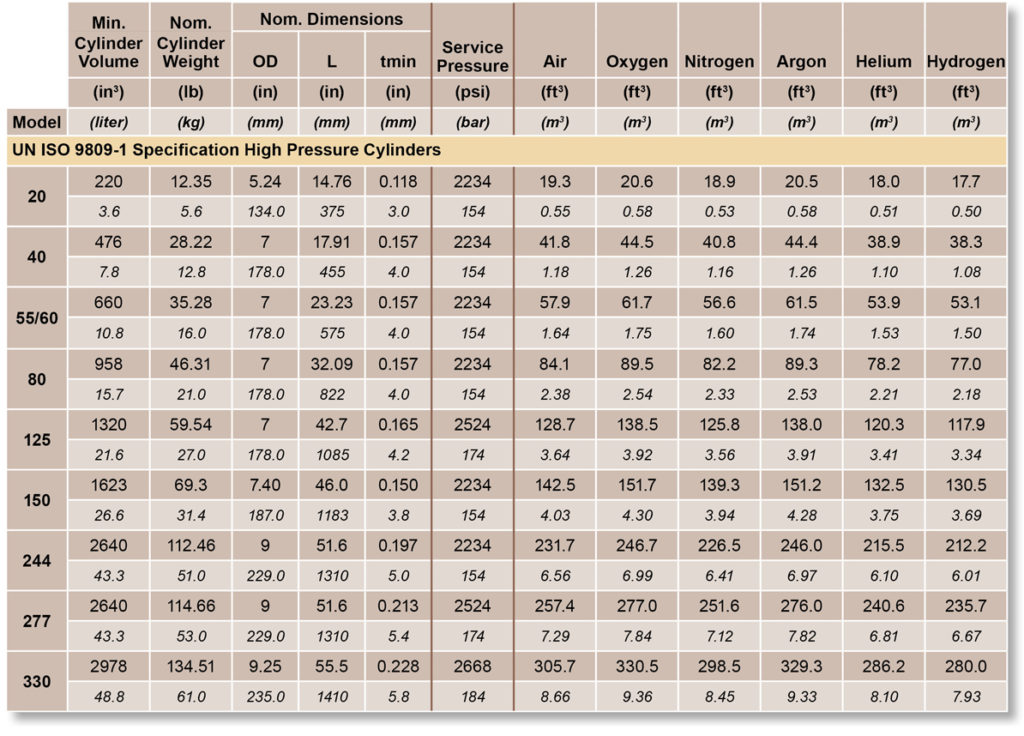

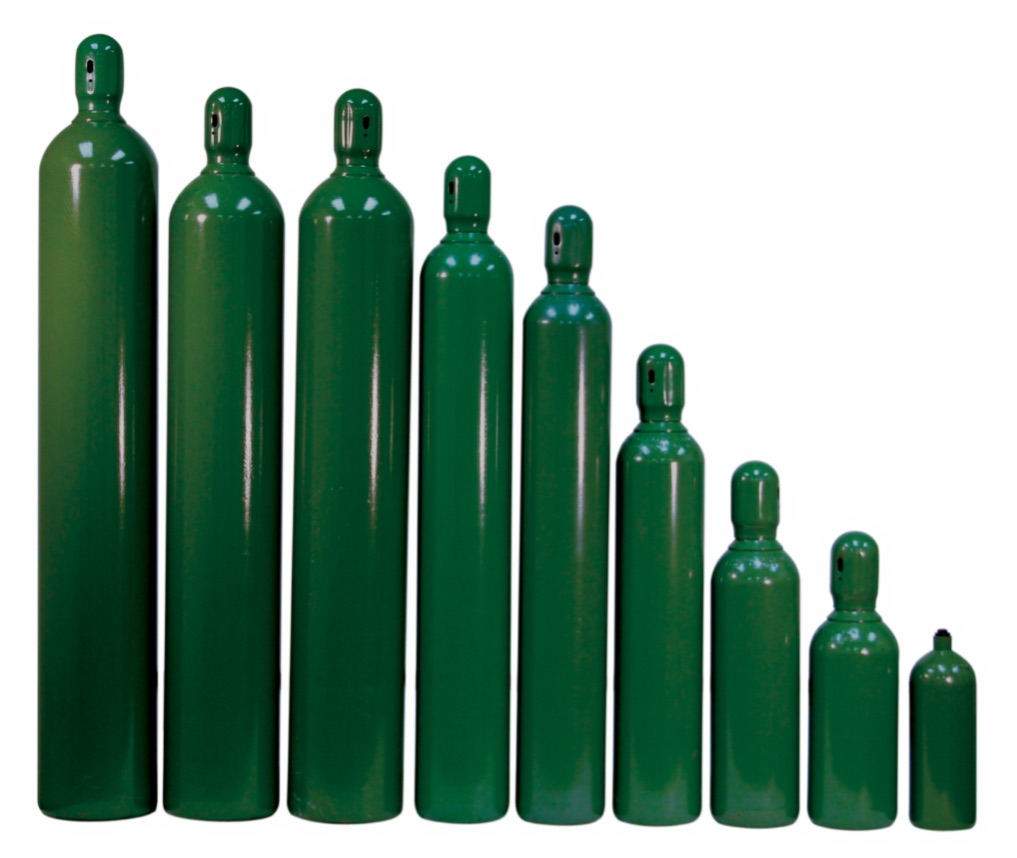

High Pressure Cylinder Specifications
| Notes: |
| – All cylinders furnished with 3/4″ NGT internal threads, unless specified otherwise. |
| – Nominal weight includes neckring but excludes the valve and cap. Add 1 1/2 lb (0.7 kg) for valve and 2 lb (0.91 kg) for cap. |
| – Cap adds approximately 5″ (127 mm) to cylinder height. |
| – Cylinder capacities are approximate at 70 degrees F (21 degrees C). |
